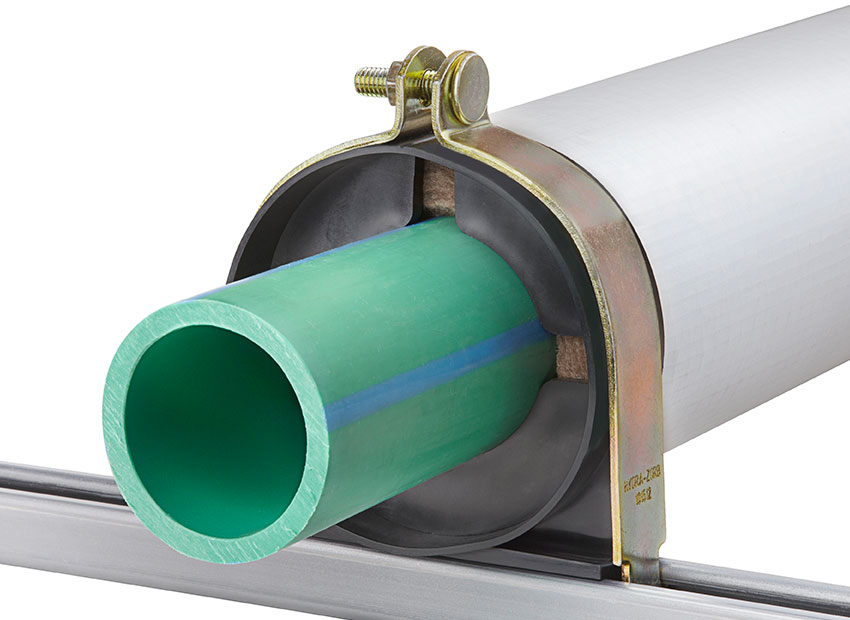

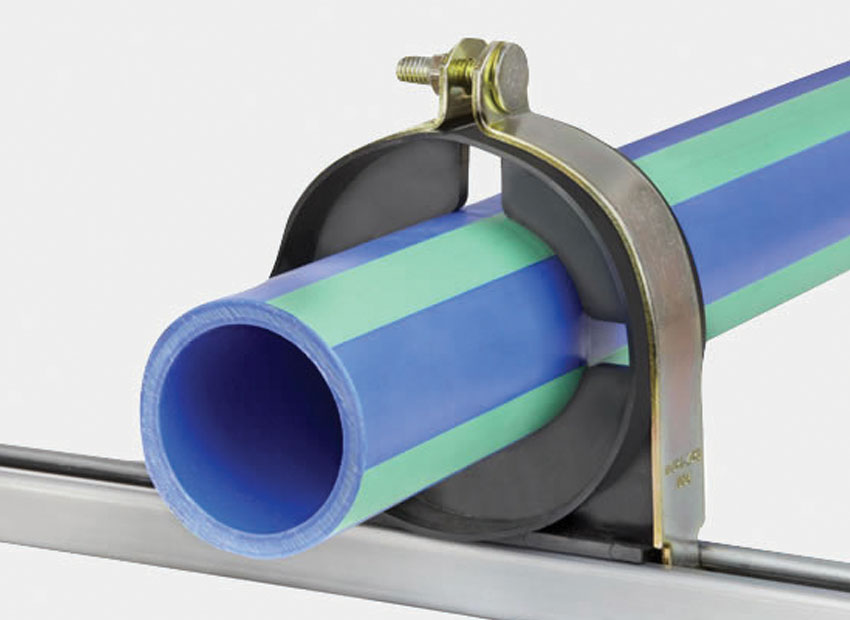

The Klo-Shure 9-Series Metric Insulation Couplings are specifically designed for use on metric pipe installs with fiberglass insulation. The patented design creates a superior vapor barrier on plumbing and HVACR applications.

Key Features

  • UL Classified 2043 (25/50) for use in plenums and air handling systems.
  • ANSI/MSS SP-58 Type 61 Certified.
  • Superior Vapor Barrier at suspension points.
  • Eliminate shock and vibration.
  • Three times faster installation of closed-cell or elastomeric insulation than traditional methods.
  • Dramatically improved finished appearance of insulated tubing.
  • Eliminates insulation compression at suspension points.
  • All metal components have a Trivalent (non-hex) plating.
  • Available in 304 and 316 stainless steel.
  • For use with strut-mounted clamps.
  • Available in metric sizes from 25mm to 110mm.
  • Insulation wall thickness sizes available in 1" and 1-1/2".
  • Molded with high strength Thermoplastic Olefin (TPO) with UV-Rated Additive.
  • Temperature rating: -60F to +225F.
  • Made in the U.S.A.

Use Recommendations

  1. Maintains thermal vapor barrier.
  2. Properly supports pipe and tube.
  3. Overwrap of Klo-Shure coupling with insulation is not required.
  4. Acceptable for horizontal, vertical, and inverted installations.

Klo-Shure 9-Series Metric Insulation Clamps include the Klo-Shure coupling, strut clamps with welded fastener and locknut. For use with fiberglass insulation.
