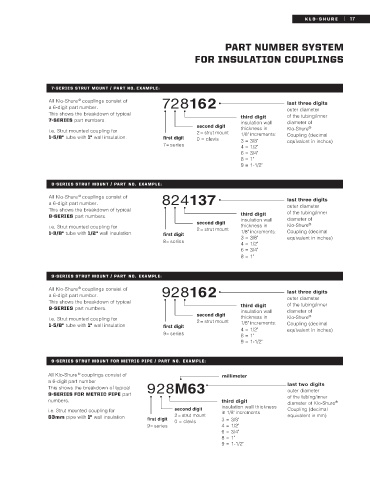

PART NUMBER SYSTEM
FOR INSULATION COUPLINGS
7-SERIES STRUT MOUNT / PART NO. EXAMPLE:
®
All Klo-Shure couplings consist of 728162 last three digits
a 6-digit part number. outer diameter
This shows the breakdown of typical
third digit of the tubing/inner
7-SERIES part numbers. insulation wall diameter of
second digit ®
i.e. Strut mounted coupling for 2 = strut mount thickness in Klo-Shure
1/8" increments:
1-5/8" tube with 1" wall insulation. first digit 0 = clevis 3 = 3/8" Coupling (decimal
7= series 4 = 1/2" equivalent in inches)
6 = 3/4"
8 = 1"
9 = 1-1/2"
8-SERIES STRUT MOUNT / PART NO. EXAMPLE:
®
All Klo-Shure couplings consist of 824137 last three digits
a 6-digit part number.
outer diameter
This shows the breakdown of typical of the tubing/inner
8-SERIES part numbers. third digit
insulation wall diameter of
second digit ®
i.e. Strut mounted coupling for 2 = strut mount thickness in Klo-Shure
1-3/8" tube with 1/2" wall insulation. first digit 1/8" increments: Coupling (decimal
3 = 3/8" equivalent in inches)
8= series
4 = 1/2"
6 = 3/4"
8 = 1"
9-SERIES STRUT MOUNT / PART NO. EXAMPLE:
®
All Klo-Shure couplings consist of 928162 last three digits
a 6-digit part number.
outer diameter
This shows the breakdown of typical of the tubing/inner
9-SERIES part numbers. third digit
insulation wall diameter of
second digit ®
i.e. Strut mounted coupling for 2 = strut mount thickness in Klo-Shure
1-5/8" tube with 1" wall insulation first digit 1/8" increments: Coupling (decimal
4 = 1/2" equivalent in inches)
9= series 8 = 1"
9 = 1-1/2"
9-SERIES STRUT MOUNT FOR METRIC PIPE / PART NO. EXAMPLE:
®
All Klo-Shure couplings consist of millimeter
a 6-digit part number last two digits
This shows the breakdown of typical 928M63 outer diameter
9-SERIES FOR METRIC PIPE part
of the tubing/inner
numbers. third digit diameter of Klo-Shure ®
insulation wall thickness
i.e. Strut mounted coupling for second digit in 1/8" increments Coupling (decimal
63mm pipe with 1" wall insulation 2 = strut mount equivalent in mm)
first digit 3 = 3/8"
0 = clevis
9= series 4 = 1/2"
6 = 3/4"
8 = 1"
9 = 1-1/2"
