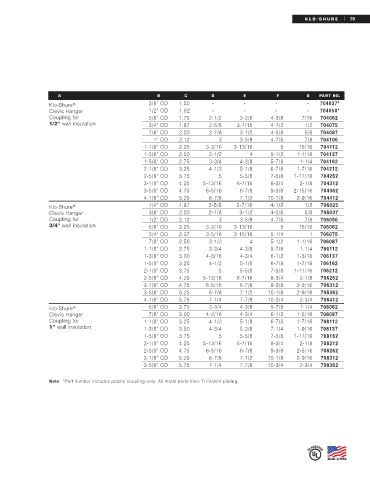

KL O- SHURE | 19

A B C D E F G PART NO.
Klo-Shure
** ® 3/8" OD 1.50 - - - - 704037*
Clevis Hanger 1/2" OD 1.62 - - - - 704050*
Coupling for 5/8" OD 1.75 2-1/2 3-3/8 4-3/8 7/16 704062
1/2" wall insulation 3/4" OD 1.87 2-5/8 3-7/16 4-1/2 1/2 704075
7/8" OD 2.00 2-7/8 3-1/2 4-5/8 5/8 704087
1" OD 2.12 3 3-5/8 4-7/8 7/8 704100
1-1/8" OD 2.25 3-3/16 3-13/16 5 15/16 704112
1-3/8" OD 2.50 3-1/2 4 5-1/2 1-1/16 704137
1-5/8" OD 2.75 3-3/4 4-3/8 5-7/8 1-1/4 704162
2-1/8" OD 3.25 4-1/2 5-1/8 6-7/8 1-7/16 704212
2-5/8" OD 3.75 5 5-5/8 7-5/8 1-11/16 704262
3-1/8" OD 4.25 5-13/16 6-7/16 8-3/4 2-1/8 704312
3-5/8" OD 4.75 6-5/16 6-7/8 9-3/8 2-15/16 704362
4-1/8" OD 5.25 6-7/8 7-1/2 10-1/8 2-9/16 704412
Klo-Shure 1/4" OD 1.87 2-5/8 3-7/16 4-1/2 1/2 706025
®
Clevis Hanger 3/8" OD 2.00 2-7/8 3-1/2 4-5/8 5/8 706037
Coupling for 1/2" OD 2.12 3 3-5/8 4-7/8 7/8 706050
3/4" wall insulation 5/8" OD 2.25 3-3/16 3-13/16 5 15/16 706062
3/4" OD 2.37 3-5/16 3-15/16 5-1/4 1 706075
7/8" OD 2.50 3-1/2 4 5-1/2 1-1/16 706087
1-1/8" OD 2.75 3-3/4 4-3/8 5-7/8 1-1/4 706112
1-3/8" OD 3.00 4-3/16 4-3/4 6-1/2 1-5/16 706137
1-5/8" OD 3.25 4-1/2 5-1/8 6-7/8 1-7/16 706162
2-1/8" OD 3.75 5 5-5/8 7-5/8 1-11/16 706212
2-5/8" OD 4.25 5-13/16 6-7/16 8-3/4 2-1/8 706262
3-1/8" OD 4.75 6-5/16 6-7/8 9-3/8 2-5/16 706312
3-5/8" OD 5.25 6-7/8 7-1/2 10-1/8 2-9/16 706362
4-1/8" OD 5.75 7-1/4 7-7/8 10-3/4 2-3/4 706412
®
Klo-Shure 5/8" OD 2.75 3-3/4 4-3/8 5-7/8 1-1/4 708062
Clevis Hanger 7/8" OD 3.00 4-3/16 4-3/4 6-1/2 1-5/16 708087
Coupling for 1-1/8" OD 3.25 4-1/2 5-1/8 6-7/8 1-7/16 708112
1" wall insulation 1-3/8" OD 3.50 4-3/4 5-3/8 7-1/4 1-9/16 708137
1-5/8" OD 3.75 5 5-5/8 7-5/8 1-11/16 708162
2-1/8" OD 4.25 5-13/16 6-7/16 8-3/4 2-1/8 708212
2-5/8" OD 4.75 6-5/16 6-7/8 9-3/8 2-5/16 708262
3-1/8" OD 5.25 6-7/8 7-1/2 10-1/8 2-9/16 708312
3-5/8" OD 5.75 7-1/4 7-7/8 10-3/4 2-3/4 708362

Note: *Part number includes plastic coupling only. All metal parts have Tri-Valent plating.
