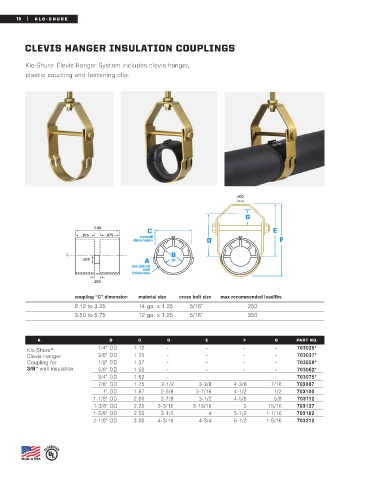

Page 20 - HZ-Catalog-2019
P. 20
18 | KL O- SHURE
18
CLEVIS HANGER INSULATION COUPLINGS
Klo-Shure Clevis Hanger System includes clevis hanger,
plastic coupling and fastening clip.
coupling “C” dimension material size cross bolt size max recommended load/lbs
2.12 to 3.25 14 ga. x 1.25 5/16" 250
3.50 to 5.75 12 ga. x 1.25 5/16" 350
A B C D E F G PART NO.
1/4" OD 1.12 - - - - 703025*
®
Klo-Shure
Clevis Hanger 3/8" OD 1.25 - - - - 703037*
Coupling for 1/2" OD 1.37 - - - - 703050*
3/8" wall insulation 5/8" OD 1.50 - - - - 703062*
3/4" OD 1.62 - - - - 703075*
7/8" OD 1.75 2-1/2 3-3/8 4-3/8 7/16 703087
1" OD 1.87 2-5/8 3-7/16 4-1/2 1/2 703100
1-1/8" OD 2.00 2-7/8 3-1/2 4-5/8 5/8 703112
1-3/8" OD 2.25 3-3/16 3-13/16 5 15/16 703137
1-5/8" OD 2.50 3-1/2 4 5-1/2 1-1/16 703162
2-1/8" OD 3.00 4-3/16 4-3/4 6-1/2 1-5/16 703212
