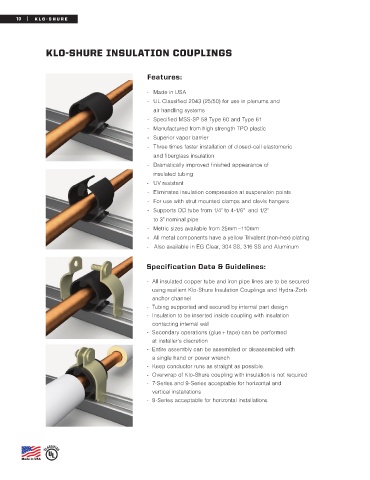

KLO-SHURE INSULATION COUPLINGS
Features:
- Made in USA
- UL Classified 2043 (25/50) for use in plenums and
air handling systems
- Specified MSS-SP 58 Type 60 and Type 61
- Manufactured from high strength TPO plastic
- Superior vapor barrier
- Three times faster installation of closed-cell elastomeric
and fiberglass insulation
- Dramatically improved finished appearance of
insulated tubing
- UV resistant
- Eliminates insulation compression at suspension points
- For use with strut mounted clamps and clevis hangers
- Supports OD tube from 1/4" to 4-1/8" and 1/2"
to 3" nominal pipe
- Metric sizes available from 25mm –110mm
- All metal components have a yellow Trivalent (non-hex) plating
- Also available in EG Clear, 304 SS, 316 SS and Aluminum
Specification Data & Guidelines:
- All insulated copper tube and iron pipe lines are to be secured
using resilient Klo-Shure Insulation Couplings and Hydra-Zorb
anchor channel
- Tubing supported and secured by internal part design
- Insulation to be inserted inside coupling with insulation
contacting internal wall
- Secondary operations (glue + tape) can be performed
at installer's discretion
- Entire assembly can be assembled or disassembled with
a single hand or power wrench
- Keep conductor runs as straight as possible.
- Overwrap of Klo-Shure coupling with insulation is not required
- 7-Series and 9-Series acceptable for horizontal and
vertical installations
- 8-Series acceptable for horizontal installations
