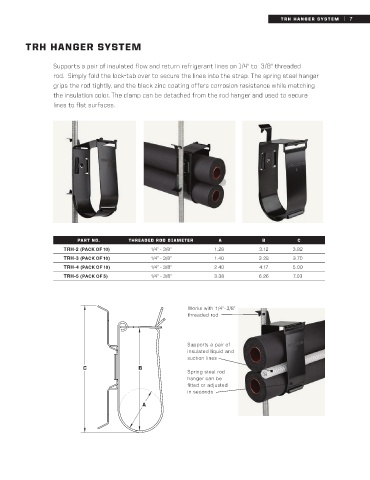

TRH HANGER S Y S TEM | 7

TRH HANGER SYSTEM

Supports a pair of insulated flow and return refrigerant lines on 1/4" to 3/8" threaded
rod. Simply fold the lock-tab over to secure the lines into the strap. The spring steel hanger
grips the rod tightly, and the black zinc coating offers corrosion resistance while matching
the insulation color. The clamp can be detached from the rod hanger and used to secure
lines to flat surfaces.

PART NO. THREADED ROD DIAMETER A B C
Part Number DIM A 1/4" - 3/8" Dim C 3.12 3.82
TRH-2 (PACK OF 10)
1.28
Dim B
1.28"
3.12"
1.40
TRH-2 TRH-3 (PACK OF 10) 1/4" - 3/8" 3.82" 3.28 3.70
TRH-3 1.40" 3.28" 3.70"
TRH-4 (PACK OF 10) 1/4" - 3/8" 2.40 4.17 5.00
TRH-4 2.40" 4.17" 5.00"
TRH-5 TRH-5 (PACK OF 5) 1/4" - 3/8" 7.03" 6.26 7.03
3.38
6.26"
3.38"
Works with 1/4" - 3/8"
threaded rod

Supports a pair of
insulated liquid and
suction lines
C B
Spring steel rod
hanger can be
fitted or adjusted
in seconds

A
