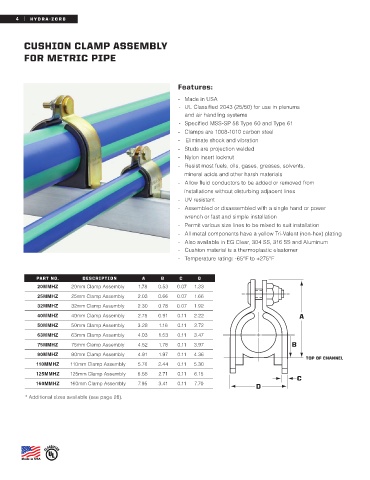

Page 6 - HZ-Catalog-2019

4 | HYDRA - ZORB

CUSHION CLAMP ASSEMBLY
4
FOR METRIC PIPE

Features:

- Made in USA
- UL Classified 2043 (25/50) for use in plenums
and air handling systems
- Specified MSS-SP 58 Type 60 and Type 61
- Clamps are 1008-1010 carbon steel
- Eliminate shock and vibration
- Studs are projection welded
- Nylon insert locknut
- Resist most fuels, oils, gases, greases, solvents,
mineral acids and other harsh materials
- Allow fluid conductors to be added or removed from
installations without disturbing adjacent lines
- UV resistant
- Assembled or disassembled with a single hand or power
wrench or fast and simple installation
- Permit various size lines to be mixed to suit installation
- All metal components have a yellow Tri-Valent (non-hex) plating
- Also available in EG Clear, 304 SS, 316 SS and Aluminum
- Cushion material is a thermoplastic elastomer
- Temperature rating: -65°F to +275°F

PART NO. DESCRIPTION A B C D
20MMHZ 20mm Clamp Assembly 1.78 0.53 0.07 1.33
25MMHZ 25mm Clamp Assembly 2.03 0.66 0.07 1.66
32MMHZ 32mm Clamp Assembly 2.30 0.78 0.07 1.92
40MMHZ 40mm Clamp Assembly 2.75 0.91 0.11 2.22 A
50MMHZ 50mm Clamp Assembly 3.28 1.16 0.11 2.72
63MMHZ 63mm Clamp Assembly 4.03 1.53 0.11 3.47
75MMHZ 75mm Clamp Assembly 4.52 1.78 0.11 3.97 B
90MMHZ 90mm Clamp Assembly 4.91 1.97 0.11 4.36
TOP OF CHANNEL
110MMHZ 110mm Clamp Assembly 5.76 2.44 0.11 5.30
125MMHZ 125mm Clamp Assembly 6.55 2.71 0.11 6.15
C
160MMHZ 160mm Clamp Assembly 7.95 3.41 0.11 7.70 D

* Additional sizes available (see page 28).
