6       |   HYDRA - ZORB



                    6

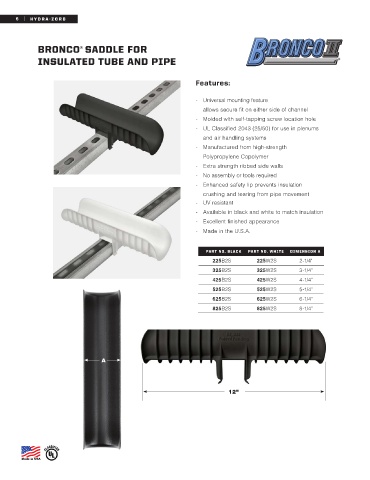

              BRONCO  SADDLE FOR
                            ®
              INSULATED TUBE AND PIPE


                                                                  Features:


                                                                  -  Universal mounting feature
                                                                     allows secure fit on either side of channel
                                                                  -  Molded with self-tapping screw location hole
                                                                  -   UL Classified 2043 (25/50) for use in plenums
                                                                     and air handling systems
                                                                  -  Manufactured from high-strength
                                                                     Polypropylene Copolymer
                                                                  -  Extra strength ribbed side walls
                                                                  -  No assembly or tools required
                                                                  -  Enhanced safety lip prevents insulation
                                                                     crushing and tearing from pipe movement
                                                                  -  UV resistant
                                                                  -  Available in black and white to match insulation
                                                                  -  Excellent finished appearance
                                                                  -  Made in the U.S.A.


                                                                           PART  NO.  BLACK     PART  NO.  WHITE        DIMENSION A
                                                                       225B2S         225W2S        2-1/4"
                                                                       325B2S         325W2S        3-1/4"
                                                                       425B2S         425W2S        4-1/4"
                                                                       525B2S         525W2S        5-1/4"
                                                                       625B2S         625W2S        6-1/4"
                                                                       825B2S         825W2S        8-1/4"















                                                                             12"
   3   4   5   6   7   8   9   10   11   12   13
