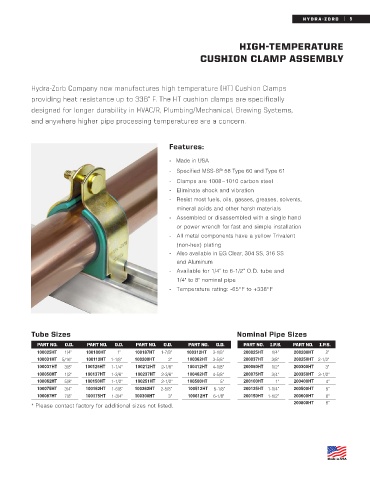

Page 7 - HZ-Catalog-2019

HYDRA - ZORB | 5

HIGH-TEMPERATURE

CUSHION CLAMP ASSEMBLY

Hydra-Zorb Company now manufactures high temperature (HT) Cushion Clamps

providing heat resistance up to 338° F. The HT cushion clamps are specifically
designed for longer durability in HVAC/R, Plumbing/Mechanical, Brewing Systems,
and anywhere higher pipe processing temperatures are a concern.

Features:

- Made in USA
- Specified MSS-SP 58 Type 60 and Type 61
- Clamps are 1008 –1010 carbon steel
- Eliminate shock and vibration
- Resist most fuels, oils, gasses, greases, solvents,
mineral acids and other harsh materials
- Assembled or disassembled with a single hand
or power wrench for fast and simple installation
- All metal components have a yellow Trivalent
(non-hex) plating
- Also available in EG Clear, 304 SS, 316 SS
and Aluminum
- Available for 1/4" to 6-1/2" O.D. tube and
1/4" to 8" nominal pipe
- Temperature rating: -65°F to +338° F

Tube Sizes Nominal Pipe Sizes

PART NO. O.D. PART NO. O.D. PART NO. O.D. PART NO. O.D. PART NO. I.P.S. PART NO. I.P.S.
100025HT 1/4" 100100HT 1" 100187HT 1-7/8" 100312HT 3-1/8" 200025HT 1/4" 200200HT 2"

100031HT 5/16" 100112HT 1-1/8" 100200HT 2" 100362HT 3-5/8" 200037HT 3/8" 200250HT 2-1/2"

100037HT 3/8" 100125HT 1-1/4" 100212HT 2-1/8" 100412HT 4-1/8" 200050HT 1/2" 200300HT 3"

100050HT 1/2" 100137HT 1-3/8" 100237HT 2-3/8" 100462HT 4-5/8" 200075HT 3/4" 200350HT 3-1/2"
100062HT 5/8" 100150HT 1-1/2" 100251HT 2-1/2" 100500HT 5" 200100HT 1" 200400HT 4"

100075HT 3/4" 100162HT 1-5/8" 100262HT 2-5/8" 100512HT 5-1/8" 200125HT 1-1/4" 200500HT 5"

100087HT 7/8" 100175HT 1-3/4" 100300HT 3" 100612HT 6-1/8" 200150HT 1-1/2" 200600HT 6"

200800HT 8"
* Please contact factory for additional sizes not listed.
